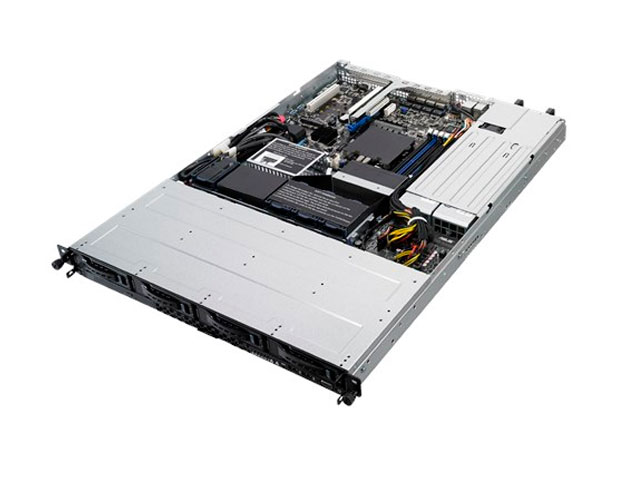

Сервер ASUS 1U RS300-E9-RS4
Сервер ASUS 1U RS300-E9-RS4
Стоечный односокетный сервер ASUS RS300-E9-RS4 1U с процессором Intel Xeon E3-1200 v6/v5, Intel Core i3, Pentium, Celeron, оперативная память до 64 Мб DDR4 2400 /2133 UDIMM 4 слота, 2 слота PCIe, 4 x 3.5" HDD с горячей заменой, 2 x SSD встроенные, 2 слота M.2 SSD, 4 x Intel I210AT + 1 x Mgmt LAN
Цена по запросу
Технические характеристики сервера ASUS 1U RS300-E9-RS4
| Процессор / Системная шина |
1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors Processor |
| Generation | E9 |
| Чипсeт | Intel® C232 Chipset |
| Оперативная память |
Total Slots : 4 (2 Channels) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB UDIMM * Refer to support page for more information |
| Слоты расширения |
Total PCI/PCI-X/PCI-E/PIKE Slots: 2 1 x PCI-E x16 (x8 Gen3 Link) 1 x PCI-E x8 (x8 Gen3 Link) |
| Хранилище данных |
SATA Controller : Intel® C232 6 x SATA3 6Gb/s ports *1 2 x M.2 connector (2280/2260/2242) *2 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Опционально) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Опционально) |
| Корпус для жесткого диска |
4 x 3.5” Hot-Swap HDD Bays 2 x SSD Internal SSD Bays 2 x M.2 (NGFF 2280/2260/2242) |
| Auxiliary Storage FDD/CD/DVD |
1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD ROM |
| Сеть | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Графика | Aspeed AST2400 with 32MB |
| Разъемы на передней панели |
2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports |
4 x RJ-45 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x PS/2 KB/MS port 1 x RJ-45 ports (One for ASMB8-iKVM)(Optional) |
| Switch/LED |
*(Subject to change without any notice) Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware Citrix XenServer |
| Администрирован-е |
ASWM Enterprise Optional ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Размеры |
615mm x 444mm x 44mm (1U) 24.21" x 17.48" x 1.73" |
| Форм-фактор | 1U |
| Вес |
Net Weight: 10.64 Kg Gross Weight: 16.76 Kg |
| Электропитание |
1+1 Redundant 450W 80 PLUS Gold Power Supply Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1 |
| Экология |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
