Сервер ASUS 2U ESC4000 G4

ESC4000 G4

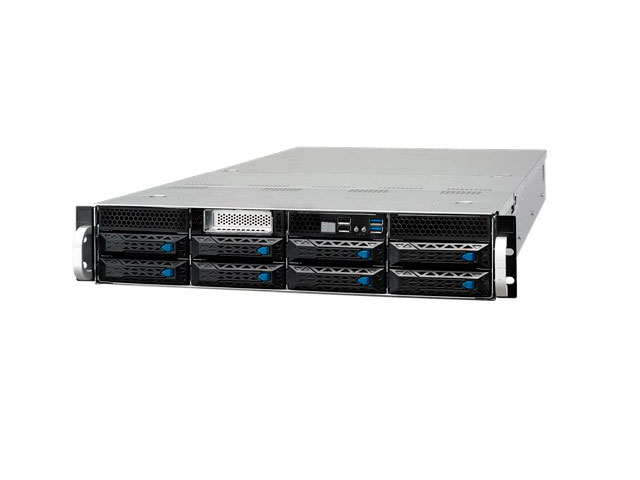

Сервер ASUS 2U ESC4000 G4

Высокопроизводительный 2U-сервер ASUS ESC4000 G4 с 16 слотами DIMM DDR4 2933/2666/2400 /2133 и 8 отсеками для жестких дисков 3.5" HDD, 11 слотов расширения PCIe, 1 x 2 порта Intel I350-AM2 Gigabit LAN контроллер + 1 x Mgmt LAN

Технические характеристики сервера ASUS 2U ESC4000 G4

Процессор / Системная шина 2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family (150W)
Чипсeт Intel® Lewisburg PCH C621
Оперативная память Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2048GB LRDIMM
Memory Type :
DDR4 2933/2666/2400 /2133 RDIMM
DDR4 2933/2666/2400 /2133 LRDIMM
DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
DDR4 Intel® Optane™ DC Persistent Memory
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Слоты расширения Total: 8 + 3
Full-length/Full-height
8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link)
(2 from CPU1 and 2 from CPU2 or 4 from CPU1 and 4 from CPU2)

Half-length/Low-profile
Rear:
1 * PCI-E 3.0 x24 (support with riser card)
(1 * PCI-E x16 (x16 Gen3 Link) from CPU1 and 1 * PCI-E x8 (x8 Gen3 Link) from CPU2)
Front:
1 * PCI-E x8 (internal HBA/RAID card)
(from CPU2, Bandwidth is shared between PCI-E x8 and 2 x NVMe drives)
Хранилище данных SATA Controller :
Intel® C621
8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)
or
6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
Корпус для жесткого диска 8 x Hot-swap 3.5" HDD Bays
Сеть 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Графика Aspeed AST2500 with 64MB VRAM
Разъемы на передней панели 1 x 80 port
2 x USB 3.0 ports + 2 x USB 2.0 ports
Rear I/O Ports 2 x USB 3.0 port
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x RJ-45 GbE LAN ports
Switch/LED Rear Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
2 x LAN LED
1 x Message LED
1 x HDD LED
Администрирован-е ACC
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CE, RCM, FCC(Class A)
Размеры 800mm x 440mm x 88mm (2U)
31.50" x 17.22" x 3.46"
Форм-фактор 2U
Электропитание 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
100-127Vac,12.9A,1000W
200-240Vac,9.5A, 1600W

1+1 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,12.9A/9.5A (x2), 47-63Hz
Экология Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
