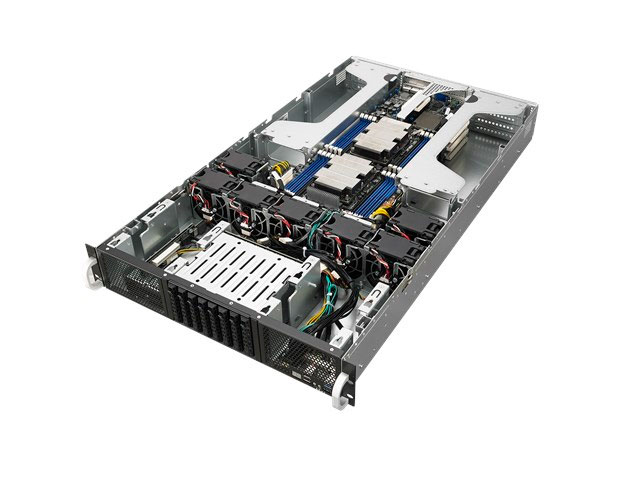

Сервер ASUS 2U ESC4000 G4S
Сервер ASUS 2U ESC4000 G4S
Сервер ASUS ESC4000 G4S на базе процессоров Intel Xeon Scalable 165Вт, высота 2U, память максимум 2048GB LRDIMM с 16 слотами DIMM и 8 отсеками для 2,5-дюймовых накопителей с функцией «горячей» замены, 11 слотов расширения PCIe
Цена по запросу
Технические характеристики сервера ASUS 2U ESC4000 G4S
| Процессор / Системная шина |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) Processor UPI (10.4 GT/s) |
| Оперативная память |
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 2048GB LRDIMM Memory Type : DDR4 2933/2666/2400 /2133 RDIMM DDR4 2933/2666/2400 /2133 LRDIMM DDR4 2933/2666/2400 /2133 LR-DIMM 3DS DDR4 Intel® Optane™ DC Persistent Memory Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS |
| Слоты расширения |
Total: 8 + 3 Full-length/Full-height 8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) Half-length/Low-profile Rear: 1 * PCI-E 3.0 x24 (support with riser card) (1 * PCI-E x16 (x16 Gen3 Link) and 1 * PCI-E x8 (x8 Gen3 Link)) Front: 1 * PCI-E x8 (internal HBA/RAID card) |
| Хранилище данных |
SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260) or 6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260) (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| Корпус для жесткого диска | 8 x Hot-swap 2.5" HDD Bays |
| Сеть | 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB |
| Разъемы на передней панели |
1 x 80 port 2 x USB 3.0 ports + 2 x USB 2.0 ports |
| Rear I/O Ports |
2 x USB 3.0 port 1 x VGA port 1 x RJ-45 Mgmt LAN port 2 x RJ-45 GbE LAN ports |
| Switch/LED |
Rear Switch/LED: 1 x Power switch/LED 1 x Location LED 1 x Message LED 1 x HDD Access LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 2 x LAN LED 1 x Message LED 1 x HDD LED |
| Администрирован-е |
ACC On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Размеры | 800mm x 440mm x 88mm |
| Форм-фактор | 2U |
| Электропитание |
1+1 Redundant 1600W 80 PLUS Platinum Power Supply 100-127Vac,12.9A,1000W 200-240Vac,9.5A, 1600W 1+1 Redundant 2200W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,12.9A/9.5A (x2), 47-63Hz *2200W Power supply is only available for selected countries. |
| Экология |
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70 Non operation humidity: 20% ~ 90% ( Non condensing) |
